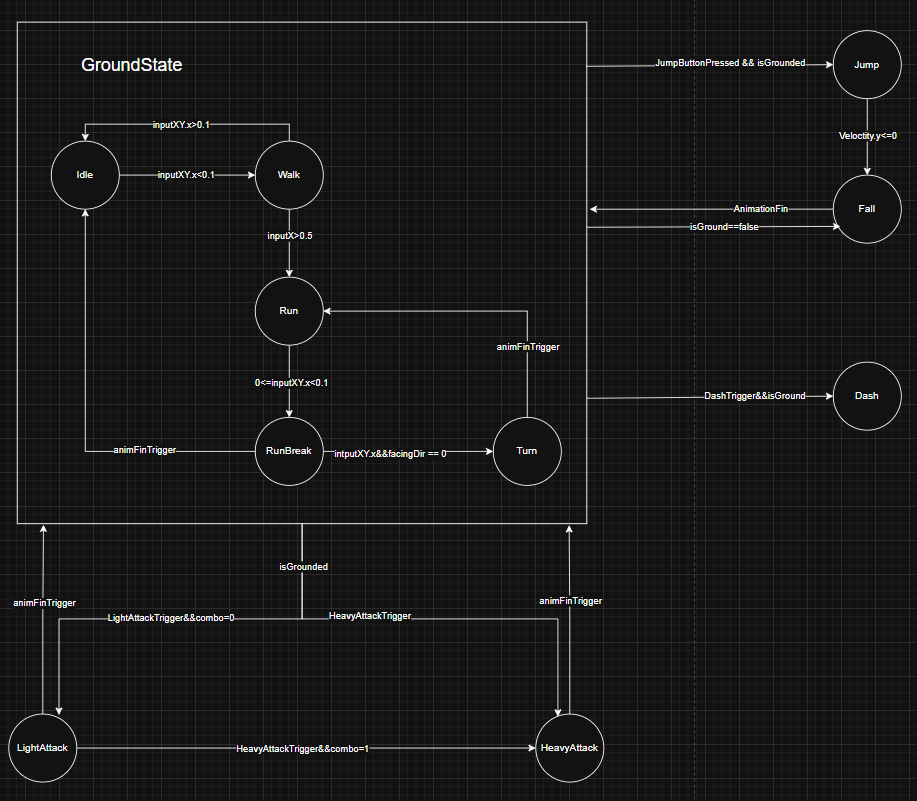

image-20250520115822802

轻重攻击逻辑

  • 轻重攻击只能在地面释放
  • 轻攻击有三段，第二段可以衔接重攻击
  • 重攻击可以单独释放

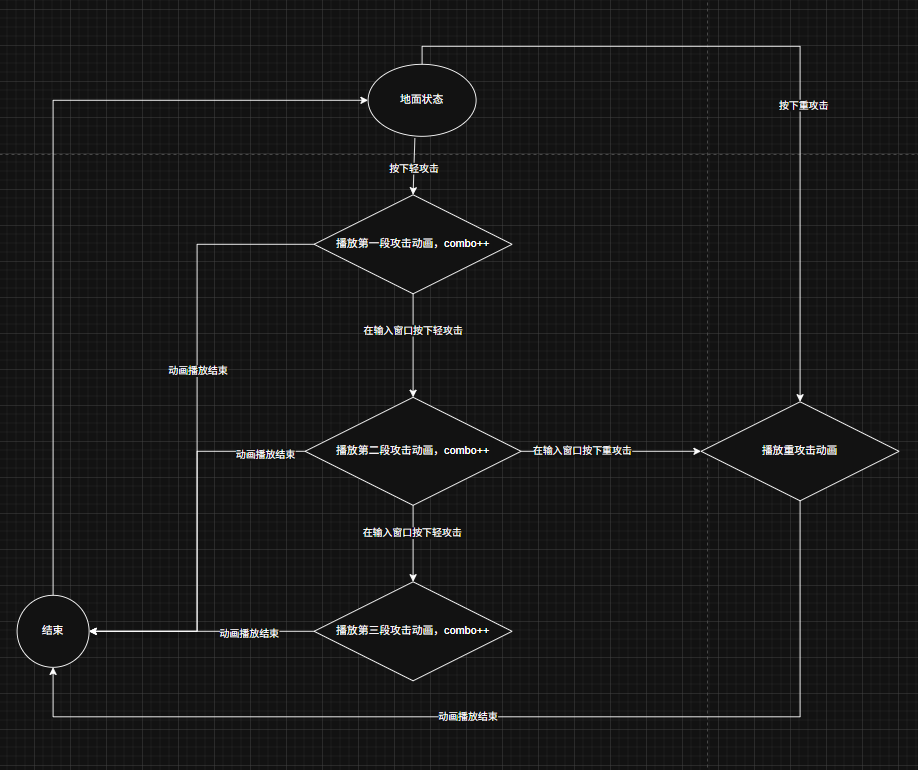

image-20250521102337186

实现

状态机的切换

攻击的实现和跳跃，冲刺的实现类似。都是使用输入事件监听的方法。在PlayerGroundState中添加新的事件。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
public class PlayerGroundState : PlayerState
{
    public PlayerGroundState(Player player, PlayerStateMachine stateMachine, string animBoolName, string animTriggerName) : base(player, stateMachine, animBoolName, animTriggerName)
    {
    }

    public override void Enter()
    {
        base.Enter();
        playerInput.GamePlay.Jump.started += Jump;
        playerInput.GamePlay.Dash.started += Dash;
        playerInput.GamePlay.BackDash.started += BackDash;
        playerInput.GamePlay.LightAttack.started += LightAttack;
        playerInput.GamePlay.HeavyAttack.started += HeavyAttack;
    }

    private void HeavyAttack(InputAction.CallbackContext context)
    {
        if(physicsCheck.isGrounded) stateMachine.ChangeState(player.heavyAttackState);
    }

    private void LightAttack(InputAction.CallbackContext context)
    {
        if (physicsCheck.isGrounded)
          stateMachine.ChangeState(player.lightAttackState);
    }

    private void BackDash(InputAction.CallbackContext context)
    {
        if (physicsCheck.isGrounded)
            stateMachine.ChangeState(player.backDashState);
    }

    private void Dash(InputAction.CallbackContext context)
    {
        if (physicsCheck.isGrounded)
            stateMachine.ChangeState(player.dashState);
    }

    private void Jump(InputAction.CallbackContext context)
    {
        if(physicsCheck.isGrounded)
            stateMachine.ChangeState(player.jumpState);
    }

    public override void Exit()
    {
        base.Exit();
        playerInput.GamePlay.Jump.started -= Jump;
        playerInput.GamePlay.Dash.started -= Dash;
        playerInput.GamePlay.BackDash.started -= BackDash;
        playerInput.GamePlay.LightAttack.started -= LightAttack;
        playerInput.GamePlay.HeavyAttack.started -= HeavyAttack;
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();
        if (!physicsCheck.isGrounded) stateMachine.ChangeState(player.fallState);
    }

    public override void PhysicsUpdate()
    {
        base.PhysicsUpdate();
    }
}

当按下轻重攻击时，分别进入到对应状态。

1
2
3
4
5
6
7
8
9
private void HeavyAttack(InputAction.CallbackContext context)
{
    if(physicsCheck.isGrounded) stateMachine.ChangeState(player.heavyAttackState);
}

private void LightAttack(InputAction.CallbackContext context)
{
    if (physicsCheck.isGrounded) stateMachine.ChangeState(player.lightAttackState);
}

动画状态机设置

动画状态机的对应参数是Trigger和comboCounter

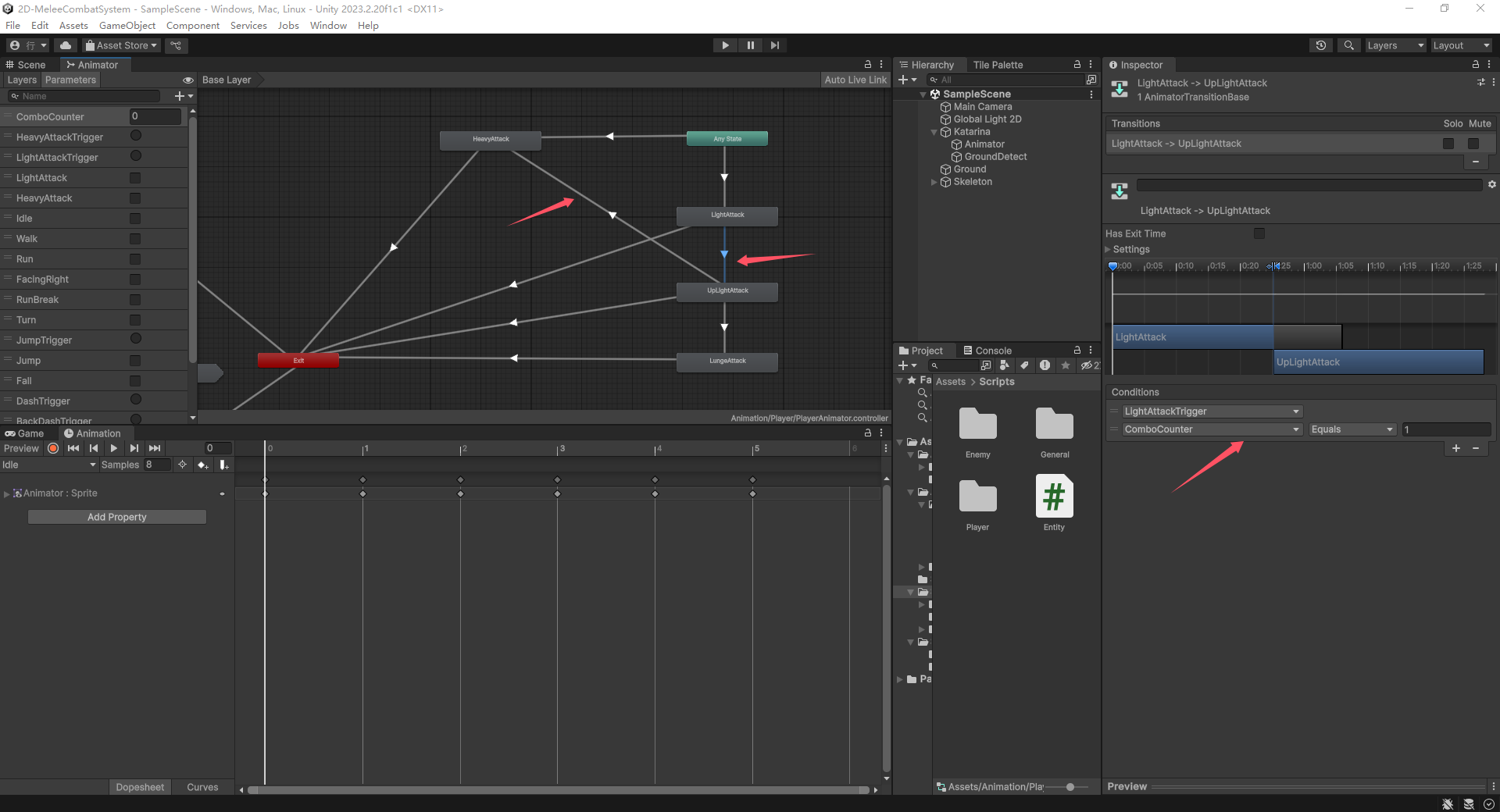

image-20250521095013034

如何实现多段攻击

​ 通过在LightAttack状态中同样添加按键触发事件来实现。当从Ground状态进入到LightAttack状态时，每按一次轻攻击键都会触发Trigger。但是这样就存在一个问题，因为anystate连接到了第一段攻击，当我们进行第二段攻击时，再次按下攻击键，又会返回到第一段攻击，所以我们需要额外添加一个ComboCounter参数，当进入到攻击状态时，把combo数置0，之后每触发一次攻击就加一，至于状态的退出，还是用动画绑定事件的方法。重攻击状态的实现比较简单，这里就不放了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
public class PlayerLightAttackState : PlayerState
{
    public PlayerLightAttackState(Player player, PlayerStateMachine stateMachine, string animBoolName, string animTriggerName) : base(player, stateMachine, animBoolName, animTriggerName)
    {
    }

    public override void Enter()
    {
        base.Enter();
        player.comboCounter = 0;
        player.animator.SetInteger("ComboCounter", player.comboCounter);
        playerInput.GamePlay.LightAttack.started += LightAttack;
        playerInput.GamePlay.HeavyAttack.started += HeavyAttack;
    }

    private void HeavyAttack(InputAction.CallbackContext context)
    {

            stateMachine.ChangeState(player.heavyAttackState);
    }

    private void LightAttack(InputAction.CallbackContext context)
    {
            player.comboCounter++;
            player.animator.SetInteger("ComboCounter", player.comboCounter);
            animator.SetTrigger("LightAttackTrigger");
    }

    public override void Exit()
    {
        base.Exit();

        playerInput.GamePlay.LightAttack.started -= LightAttack;
        playerInput.GamePlay.HeavyAttack.started -= HeavyAttack;
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();
        if (animFinTrigger) stateMachine.ChangeState(player.idleState);
    }

    public override void PhysicsUpdate()
    {
        player.SetZeroVelocity();
    }

}

输入窗口

​ 上面的实现虽然能完成连段的释放，但是存在一个问题，那就是只要输入足够快，每一段攻击都可以瞬间切换到下一段，也就是可以在任意时候取消上一次的攻击，为了限制可以取消的时机，我们为player增加一个Bool变量isAttacking，只有isAttacking为false时，才响应输入事件，同样通过动画绑定事件的方法来控制isAttacking变量。

1
2
3
4
5
6
7
8
9
10
//PlayerAniEvents
public void AnimationAttack()
{
    player.isAttacking = true;
}
public void AnimationAttackOver()
{
    player.isAttacking = false;

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
//PlayerLightAttack
private void HeavyAttack(InputAction.CallbackContext context)
{
    if (!player.isAttacking)
        stateMachine.ChangeState(player.heavyAttackState);
}

private void LightAttack(InputAction.CallbackContext context)
{
    if (!player.isAttacking)
    {
        player.comboCounter++;
        player.animator.SetInteger("ComboCounter", player.comboCounter);
        animator.SetTrigger("LightAttackTrigger");
    }
}

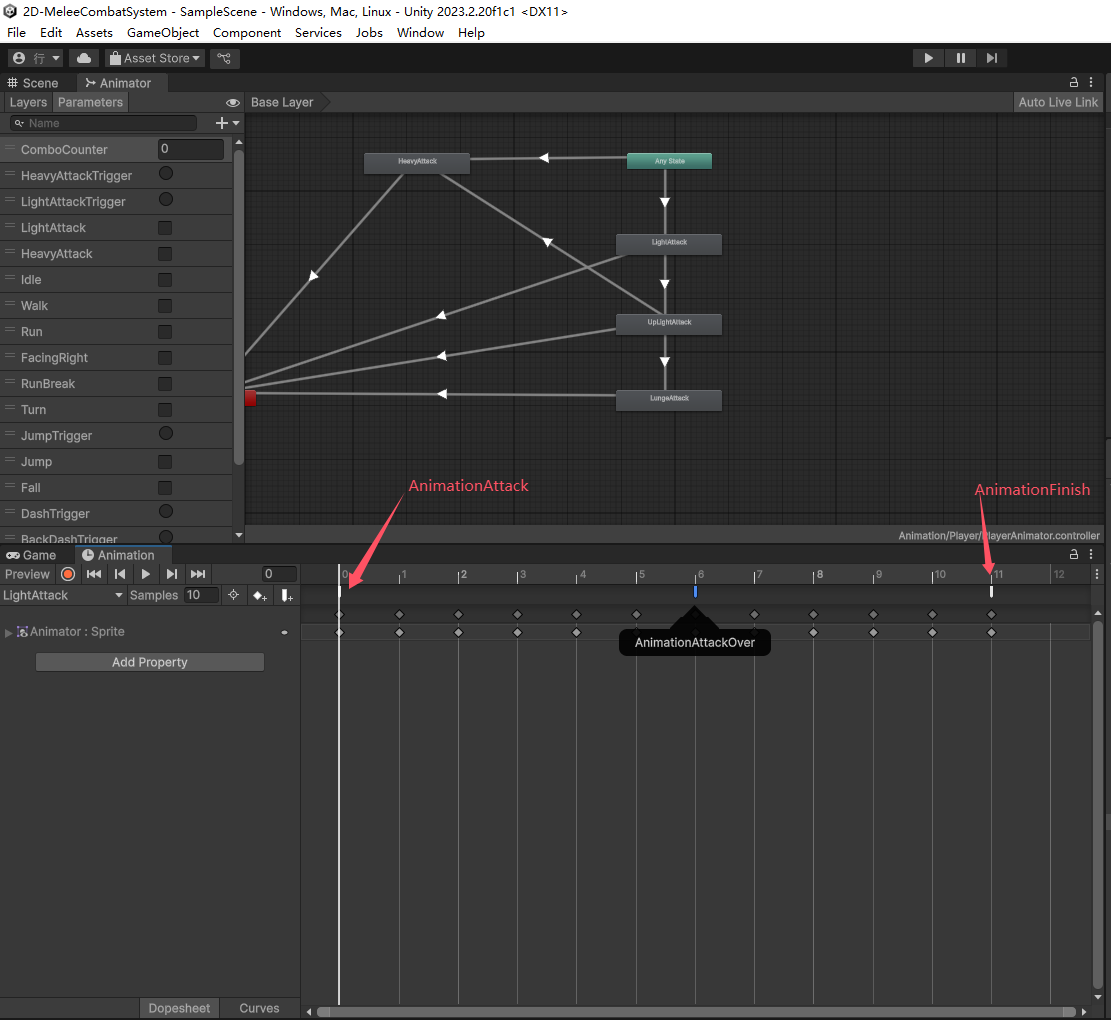

AnimationAttackOver到AnimationFin之间就是可以衔接连段的窗口

image-20250521101054741
