前言

  • 如何用状态机和物理检测实现一个基础的2D敌人Skeleton的巡逻、追逐、攻击等AI行为。

代码结构与核心类

​ 为了实现后面防御和弹反的系统，我们首先需要有一个能攻击玩家的敌人。因为敌人与玩家存在许多的共通属性，因此将代码用继承的方式重写一下，提高代码重用性和便于拓展。

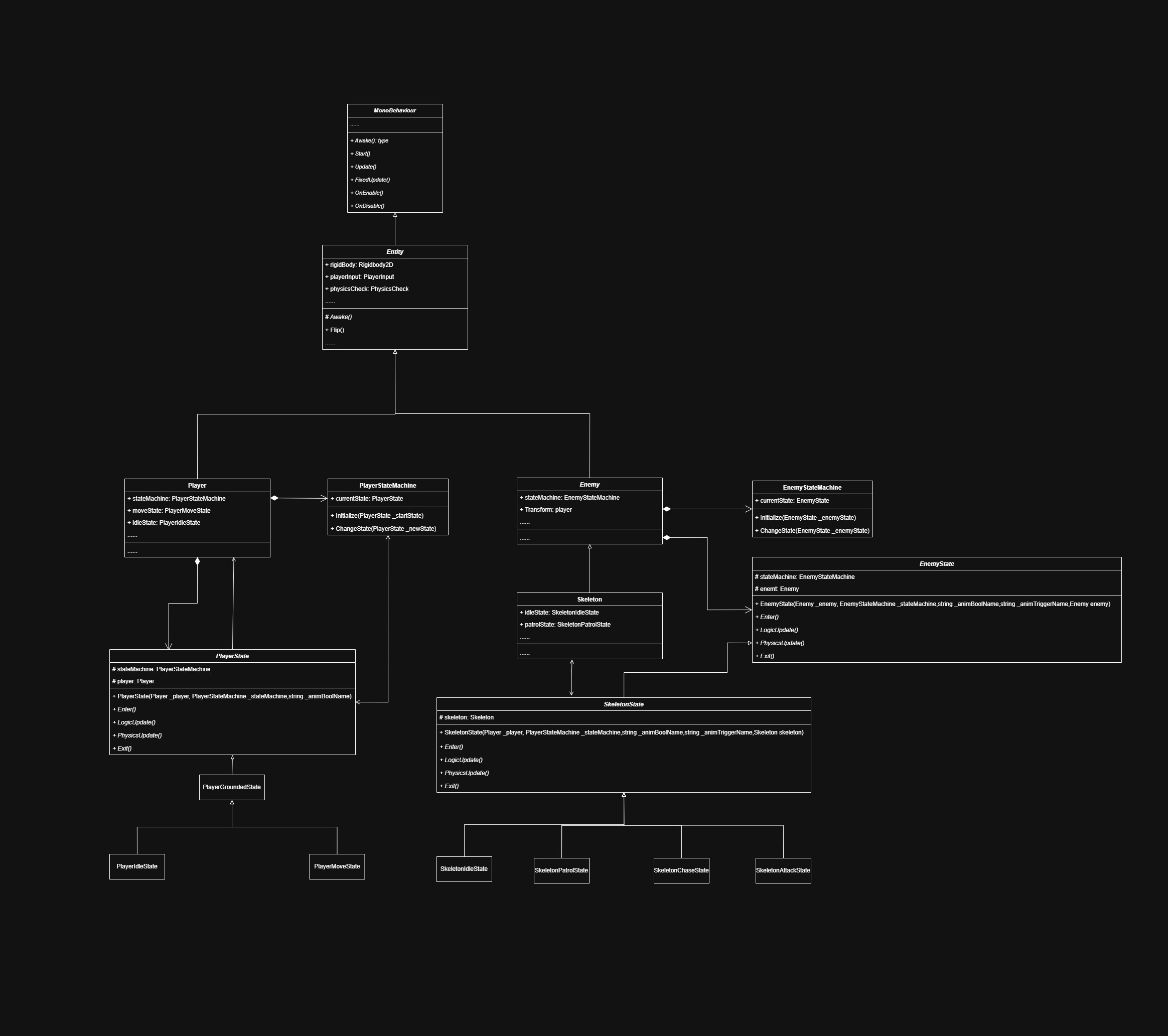

PlayerEnemyFSM

实体基类

  • Entity
    角色（玩家、敌人）的通用基类，包含如移动、朝向、物理检测等基础属性和方法。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
public class Entity : MonoBehaviour
{
    public Rigidbody2D rigidBody;
    public PlayerInput playerInput;
    public PhysicsCheck physicsCheck;
    public Animator animator;

    public bool isAttacking;

    public bool facingRight = true;
    public int facingDir = 1;
    public int moveSpeed;

    protected virtual void Awake()
    {
        rigidBody = GetComponent<Rigidbody2D>();
        physicsCheck = GetComponent<PhysicsCheck>();
        Animator[] animators = GetComponentsInChildren<Animator>();
        animator = animators[0];
    }

    public void FlipController(float x)
    {
        if (x > 0.05 && !facingRight) { Flip(); }
        else if (x < -0.05 && facingRight) { Flip(); }
    }

    public void Flip()
    {
        //Debug.Log("Flip");
        facingDir *= -1;
        facingRight = !facingRight;
        transform.Rotate(0, 180, 0);
    }

    public void SetVelocity(Vector2 inputXY)
    {
        FlipController(inputXY.x);
        rigidBody.velocity = new Vector2(moveSpeed * inputXY.x * Time.deltaTime, rigidBody.velocity.y);
    }

    public void SetVelocity(float x,float y)
    {
        FlipController(x);
        rigidBody.velocity = new Vector2(x,y);
    }

    public void SetZeroVelocity()
    {

        rigidBody.velocity = new Vector2(0, 0);
    }

}

敌人相关

  • Enemy : Entity
    敌人基类，扩展了 Entity，增加了状态机、玩家引用等。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class Enemy : Entity
{
    public EnemyStateMachine stateMachine;
    public Transform player{ get; private set; }


    protected override void Awake()
    {
        base.Awake();
        stateMachine = new EnemyStateMachine();
        player = GameObject.FindWithTag("Player").transform;

    }
    // Start is called before the first frame update
    protected virtual void Start()
    {
        //stateMachine.Initialize();
    }

    // Update is called once per frame
    protected virtual void Update()
    {
        stateMachine.currentState.LogicUpdate();
    }

    protected virtual void FixedUpdate()
    {
        stateMachine.currentState.PhysicsUpdate();
    }
}
  • EnemyState

​ 与PlayerState基本一样

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
public class EnemyState
{
    protected EnemyStateMachine stateMachine;
    protected Enemy enemy;
    private string animBoolName;
    private string animTriggerName;

    protected Rigidbody2D rigidBody;
    protected Animator animator;
    protected PhysicsCheck physicsCheck;
    public bool animFinTrigger;

    public EnemyState(EnemyStateMachine stateMachine, Enemy enemy, string animBoolName, string animTriggerName)
    {
        this.stateMachine = stateMachine;
        this.enemy = enemy;
        this.animBoolName = animBoolName;
        this.animTriggerName = animTriggerName;
    }

    public virtual void Enter()
    {
        rigidBody = enemy.rigidBody;
        animator = enemy.animator;
        physicsCheck = enemy.physicsCheck;

        if (!string.IsNullOrEmpty(animBoolName) && HasAnimatorParameter(animator, animBoolName, AnimatorControllerParameterType.Bool))
            animator.SetBool(animBoolName, true);

        if (!string.IsNullOrEmpty(animTriggerName) && HasAnimatorParameter(animator, animTriggerName, AnimatorControllerParameterType.Trigger))
            animator.SetTrigger(animTriggerName);

    }

    public virtual void Exit()
    {
        if (!string.IsNullOrEmpty(animBoolName) && HasAnimatorParameter(animator, animBoolName, AnimatorControllerParameterType.Bool))
        {
            animator.SetBool(animBoolName, false);
        }
    }

    public virtual void LogicUpdate()
    { }

    public virtual void PhysicsUpdate()
    { }

    private bool HasAnimatorParameter(Animator animator, string paramName, AnimatorControllerParameterType type)
    {
        foreach (var param in animator.parameters)
        {
            if (param.name == paramName && param.type == type)
                return true;
        }
        return false;
    }
}
  • Skeleton : Enemy
    具体的骷髅敌人类，拥有自己的状态实例（如 idleState、patrolState、chaseState、attackState）。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
public class Skeleton : Enemy
{
    public SkeletonIdleState idleState;
    public SkeletonPatrolState patrolState;
    public SkeletonChaseState chaseState;
    public SkeletonAttackState attackState;

    protected override void Awake()
    {
        base.Awake();

        idleState = new SkeletonIdleState(stateMachine, this, "Idle", "IdleTrigger", this);
        patrolState = new SkeletonPatrolState(stateMachine, this, "Patrol", "PatrolTrigger", this);
        chaseState = new SkeletonChaseState(stateMachine, this, "Chase", "ChaseTrigger", this);
        attackState = new SkeletonAttackState(stateMachine, this, "Attack", "AttackTrigger", this);
    }

    protected override void FixedUpdate()
    {
        base.FixedUpdate();
    }

    protected override void Start()
    {
        base.Start();
        stateMachine.Initialize(patrolState);
    }

    protected override void Update()
    {
        base.Update();
    }

}
  • SkeletonState: EnemyState

在EnemyState基础上增加了Skeleton，拿到Skeleton特有的属性和状态

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class SkeletonState : EnemyState
{
    protected Skeleton skeleton;
    protected float stateTimeer;

    public SkeletonState(EnemyStateMachine stateMachine, Enemy enemy, string animBoolName, string animTriggerName, Skeleton skeleton) : base(stateMachine, enemy, animBoolName, animTriggerName)
    {
        this.skeleton = skeleton;
    }

    public override void Enter()
    {
        base.Enter();
    }

    public override void Exit()
    {
        base.Exit();
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();
    }

    public override void PhysicsUpdate()
    {

    }
}

设计敌人的逻辑

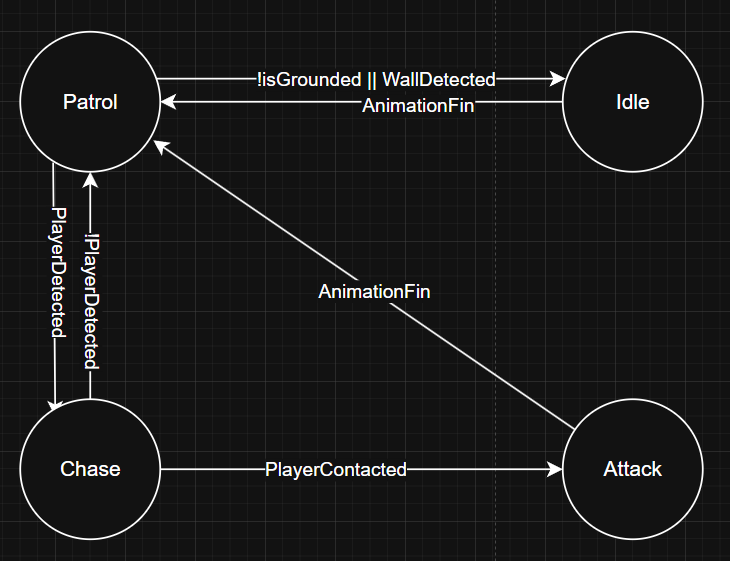

image-20250525095542765

  • 初始状态为Patrol状态，会朝着面朝方向前进，如果碰到墙壁或平台边缘就进入Idle状态
  • Idle状态会停顿一段时间，一段时间后转向回到巡逻状态
  • Patrol状态如果在面前或背后一段距离内检测到玩家，就进入Chase状态
  • Chase状态会以更快的速度接近玩家，如果接触到玩家就进入Attack状态，如果玩家脱离检测区域就回到Patrol状态
  • Attack状态播放完一遍攻击动画就结束

具体实现

动画状态机

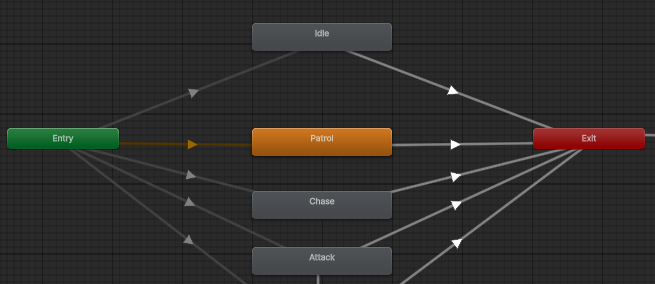

image-20250525095710265

状态检测实现

Skeleton的FSM切换依赖几个状态的检测，GroundDetect前面已经实现过，WallDetect和PlayerDetect还有PlayerContacted的实现基本一样。也是添加子物体作为检测起点，使用RayCast检测指定距离和图层内的物体。

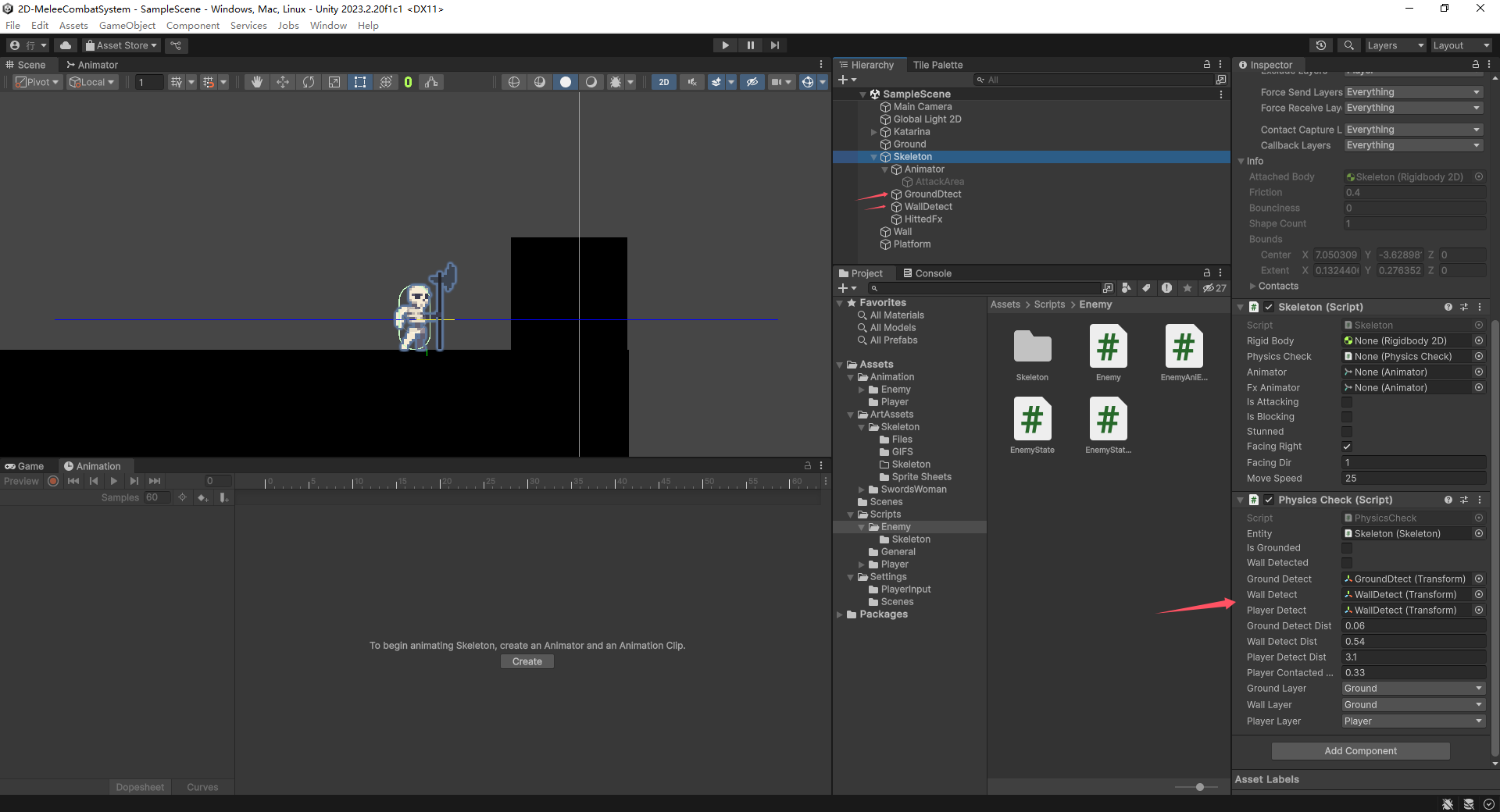

image-20250525101155190

PhysicsCheck

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
public class PhysicsCheck : MonoBehaviour
{
    [SerializeField]private Entity entity;
    public bool isGrounded;
    public bool wallDetected;
    public Transform groundDetect;
    public Transform wallDetect;
    public Transform playerDetect;
    public float groundDetectDist;
    public float wallDetectDist;
    public float playerDetectDist;
    public float playerContactedDist;
    public LayerMask groundLayer;
    public LayerMask wallLayer;
    public LayerMask playerLayer;


    public bool playerDetected
        => playerDetect != null && Physics2D.Raycast(
            playerDetect.position,
            entity.facingDir * Vector2.right,
            playerDetectDist,
            playerLayer)||Physics2D.Raycast(
            playerDetect.position,
            entity.facingDir * Vector2.left,
            playerDetectDist,
            playerLayer);

    public bool playerContacted
        => playerDetect != null && Physics2D.Raycast(
            playerDetect.position,
            entity.facingDir * Vector2.right,
            playerContactedDist,
            playerLayer);

    void Awake()
    {
        //entity = GetComponent<Entity>();
    }

    private void Update()
    {
        CheckGround();
        WallDetected();
    }

    private void CheckGround()
    {
        if (groundDetect == null) return;

        isGrounded = Physics2D.Raycast(groundDetect.position, Vector2.down, groundDetectDist, groundLayer);
    }

    private void WallDetected()
    {
        if (wallDetect == null) return;
        wallDetected = Physics2D.Raycast(wallDetect.position, entity.facingDir*Vector2.right, wallDetectDist, wallLayer);
    }


    private void OnDrawGizmosSelected()
    {
        Gizmos.color = Color.green;
        Gizmos.DrawLine(groundDetect.position, groundDetect.position + Vector3.down * groundDetectDist);

        Gizmos.color = Color.red;
        Gizmos.DrawLine(wallDetect.position, wallDetect.position + entity.facingDir * Vector3.right * wallDetectDist);

        Gizmos.color = Color.blue;
        Gizmos.DrawLine(playerDetect.position, playerDetect.position + entity.facingDir * Vector3.right * playerDetectDist);
        Gizmos.DrawLine(playerDetect.position, playerDetect.position + entity.facingDir * Vector3.left * playerDetectDist);
        Gizmos.color = Color.yellow;
        Gizmos.DrawLine(playerDetect.position, playerDetect.position + entity.facingDir * Vector3.right * playerContactedDist);
    }
}

Patrol

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public class SkeletonPatrolState : SkeletonState
{
    public SkeletonPatrolState(EnemyStateMachine stateMachine, Enemy enemy, string animBoolName, string animTriggerName, Skeleton skeleton) : base(stateMachine, enemy, animBoolName, animTriggerName, skeleton)
    {
    }

    public override void Enter()
    {
        base.Enter();
    }

    public override void Exit()
    {
        base.Exit();
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();
        if(physicsCheck.playerDetected) stateMachine.ChangeState(skeleton.chaseState);
        if (!physicsCheck.isGrounded || physicsCheck.wallDetected){
            stateMachine.ChangeState(skeleton.idleState); }
    }

    public override void PhysicsUpdate()
    {
        enemy.SetVelocity(enemy.facingDir * enemy.moveSpeed * Time.deltaTime, 0);

    }
}

Idle

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
public class SkeletonIdleState : SkeletonState
{
    public SkeletonIdleState(EnemyStateMachine stateMachine, Enemy enemy, string animBoolName, string animTriggerName, Skeleton skeleton) : base(stateMachine, enemy, animBoolName, animTriggerName, skeleton)
    {
    }

    public override void Enter()
    {
        base.Enter();
        stateTimeer = 2f;
    }

    public override void Exit()
    {
        base.Exit();
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();
        if(stateTimeer <= 0) //等待一段时间
        {
            enemy.Flip(); //先翻转再进入Patrol
            stateMachine.ChangeState(skeleton.patrolState);
        }
        else
            stateTimeer -= Time.deltaTime;
    }

    public override void PhysicsUpdate()
    {
        enemy.SetZeroVelocity();
    }
}

Chase

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
public class SkeletonChaseState : SkeletonState
{
    public SkeletonChaseState(EnemyStateMachine stateMachine, Enemy enemy, string animBoolName, string animTriggerName, Skeleton skeleton) : base(stateMachine, enemy, animBoolName, animTriggerName, skeleton)
    {
    }

    public override void Enter()
    {
        base.Enter();
    }

    public override void Exit()
    {
        base.Exit();
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();

        if (physicsCheck.playerContacted)
        {
            stateMachine.ChangeState(skeleton.attackState);
        }
        else if (!physicsCheck.playerDetected)
        {
            stateMachine.ChangeState(skeleton.patrolState);
        }
    }

    public override void PhysicsUpdate()
    {
        if(enemy.transform.position.x>= enemy.player.position.x)
        {
            enemy.SetVelocity(2*Vector2.left * enemy.moveSpeed * Time.deltaTime);
        }
        else if(enemy.transform.position.x<enemy.player.position.x)
        {
            enemy.SetVelocity(2*Vector2.right * enemy.moveSpeed * Time.deltaTime);
        }
    }
}

Attack

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
public class SkeletonAttackState : SkeletonState
{
    public SkeletonAttackState(EnemyStateMachine stateMachine, Enemy enemy, string animBoolName, string animTriggerName, Skeleton skeleton) : base(stateMachine, enemy, animBoolName, animTriggerName, skeleton)
    {
    }

    public override void Enter()
    {
        base.Enter();
        animFinTrigger = false;
        enemy.SetZeroVelocity();
    }

    public override void Exit()
    {
        base.Exit();
    }

    public override void LogicUpdate()
    {
        base.LogicUpdate();
        if (animFinTrigger) stateMachine.ChangeState(skeleton.patrolState);
    }

    public override void PhysicsUpdate()
    {

    }
}
